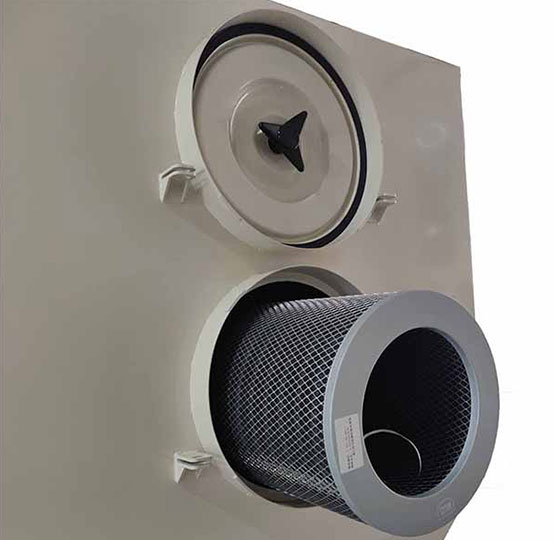

The VN Series is an industrial dust collector designed for the laser cutting industry, featuring a spoiler installed at the air inlet to direct dust particles directly into the dust container, thus eliminating the need for an additional cyclone separator. Other notable features include large air volume, pulse jet cleaning, horizontal cartridge installation, and a stable, reliable design.
| Modell | VN-4500 | VN-6500 | VN-8500 |
| Spannung (V/Hz) | 380 / 50 | ||
| Leistung (kW)/ (PS) | 5,5 / 7,5 | 7,5 / 10 | 11 / 15 |
| Anlaufstrom (A) | 90 | 110 | 130 |
| Nennstrom (A) | 10,5 | 14,1 | 20,5 |
| Maximaler Luftstrom (m³/h)/ (CFM) | 4500 / 2650 | 6500 / 3825 | 8500 / 5000 |
| Maximaler Luftdruck (Pa)/(mmH2O) |
4500 / 459 | 4500 / 459 | 4500 / 459 |
| Filterfläche (m²)/ ( Quadratfuß) | 76/818 | 114/1226 | |
| Durchm. Lufteinlass (mm) / (Zoll) |
Ø 250 / 10 | Ø 300 / 12 | Ø 300 / 12 |
| Geräusch dB (A) | 75±2 | 76±2 | 77±2 |
| Filtereffizienz | 99 % | ||
| Filterreinigung Methode | Pulsstrahl | ||
| Abmessungen [LxBxH] (mm) / (Zoll) | 1400*1250*2290 / 55,1*49,2*90,2 |
1600*1500*3185/63,0*59,1*125,4 | |
| Es ist normal, dass der Stromwert in einem kleinen Bereich schwanken kann Spannung und Frequenz beeinflussen den Stromwert |
|||
